Customized High Temperature Nickel-plated Copper Wire 100mts monthly production
Nickel plated copper wire is divided into nickel plated soft round copper wire and nickel plated hard round copper wire. Nickel plated soft round copper wire is annealed to be changed its physical properties in order to get soft. Good nickel plated copper wire’s coating is continuously and firmly attached to the surface of the conductor and the surface would not be stained after tests. The coating surface of nickel plated copper wire should be smooth and continuous, free from harmful defects such as nickel particles, burrs and mechanical damage.
| NICKEL-PLATED COPPER WIRE | |||||
| Name | Nickel-plated copper wire | ||||
| Model | TRN | ||||
| Diameter(mm) | 0.08-1.13 | ||||
| Materials and product standards | |||||
| Copper wire | GB/T3953 | ||||
| Nickel-plated copper wire | GB11019-2009 | ||||
| Dimensions and Deviations | |||||
| Diameter standard (mm) | Deviation | ||||
| 0.110-0.250 | ±0.005 | ||||
| 0.251-0.700 | ±0.010 | ||||
| 0.710-1.000 | ±0.015 | ||||
| 1.100-1.130 | ±0.020 | ||||

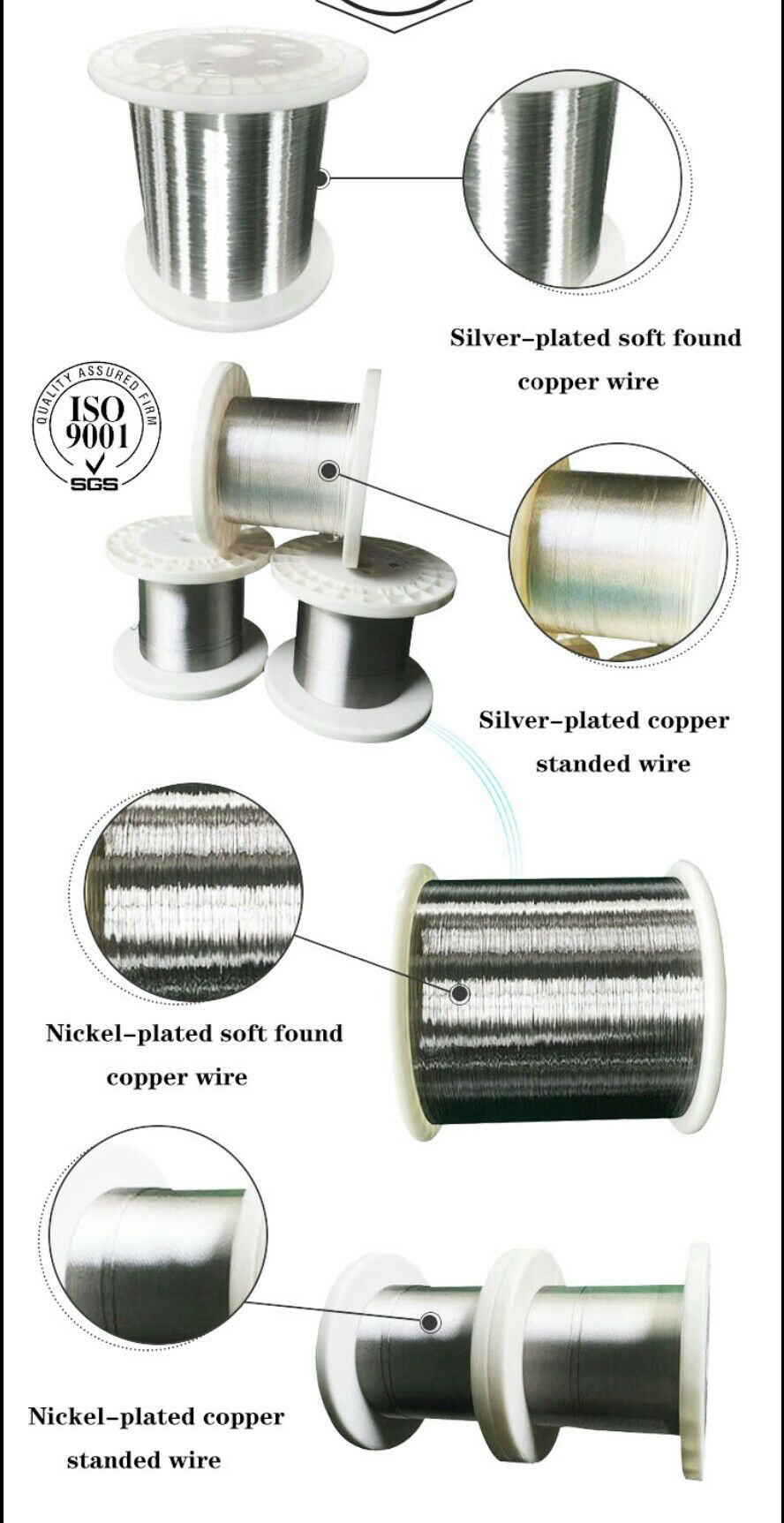

Product Details
Product Processes
The Application Field of Products
Exhibition and Certification
Packing and delivery
1.The mono-filament and its winch are supplied in plates, and then packed and delivered in boxes after proper packaging with Kraft paper and packaging film. The small size disc is fixed by custom foam, and the large size plastic rubber disk or iron disk is fixed by custom wooden frame.
2.The mono-filament and its strand are evenly wound on the wire shaft, the wire arrangement is not pressed, the wire head is fixed, and the outermost side of the wire is kept at a certain distance from the edge of the disk, so as to avoid collision in the course of transportation.
